GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

  • 1
  • 2
  • 3

Brand Name : Hoan

Model Number : GX-30A(N)

Place of Origin : China

MOQ : 4

Payment Terms : L/C,D/A,Western Union,D/P,T/T,MoneyGram

Oem/Odm Service : Available

Thickness : 32.5±1.5mm

Sample Availability : Available upon request

Shape : Customized, Non-Customized

Thermal Shock Stability : Good thermal shock stability

Material : Various materials available

Printing : yes

Slag Erosion Resistance : Excellent slag erosion resistance

Length : 113m

Shipping : by sea

Chemical Stability : Extremely high chemical stability

Product Type : Customized

Keyword : refractories materials

Feature : Sets Can′t Be Sold Separately

Thermal Shock Resistance : Good thermal shock resistance

Contact Now

Customized Products GX-30AN Unafraid of Harsh Environments for Exceptional Environmental Adaptability
GX-N Series Wire Rope Vibration Isolators

The GX-N Series wire rope vibration isolators from Xi'an Hoan Microwave are engineered to withstand extreme environmental conditions while maintaining stable performance. These isolators are designed to resist high temperatures, low temperatures, humidity, salt spray, mold, and oil contamination - conditions that typically cause rapid aging and failure in conventional vibration isolators.

Superior Environmental Resistance
  • Constructed with stainless steel wire rope core for exceptional corrosion resistance
  • Contains no organic materials (rubber or plastic), eliminating issues of aging, brittleness, and creep
  • Maintains stable performance across wide temperature range (-55°C to +200°C and higher)
  • Resists salt spray corrosion and mold infestation in marine and chemical environments
  • Ideal for shipboard equipment, coastal outdoor facilities, and chemical machinery applications

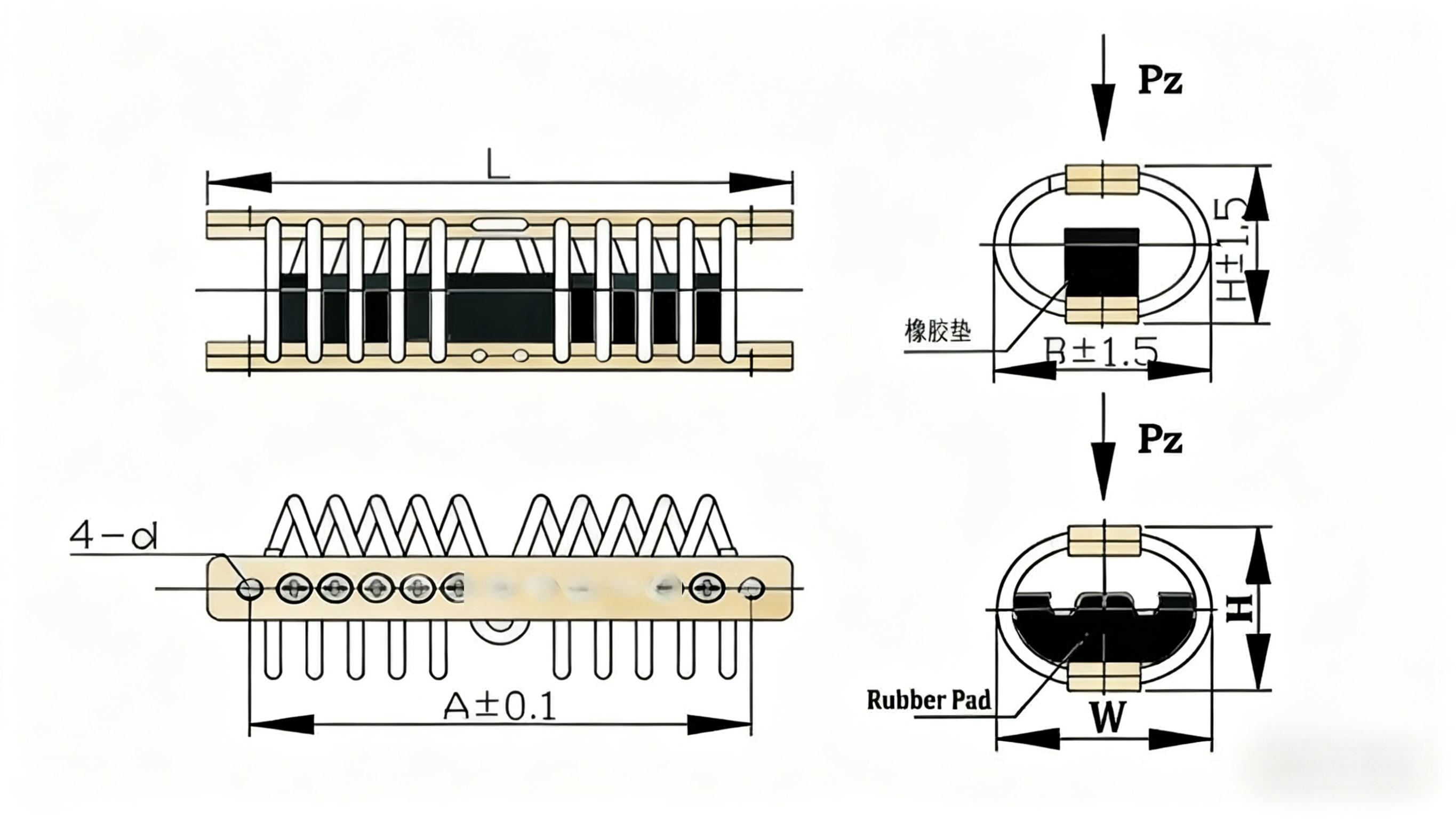

Structural Dimensions
GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance
Model L(mm) A±0.3 H±1.5 W±1.5 d
GX-10A(N) 55 49 21 26 M3-7H
GX-20A(N) 84 68 29 35 M5-7H
GX-30A(N) 113 97 32.5 40 M5-7H
GX-40A(N) 113 97 32.5 40 M5-7H
GX-50A(N) 113 97 33 40 M5-7H
GX-60A(N) 133 117 31 40 M5-7H
Performance Characteristics

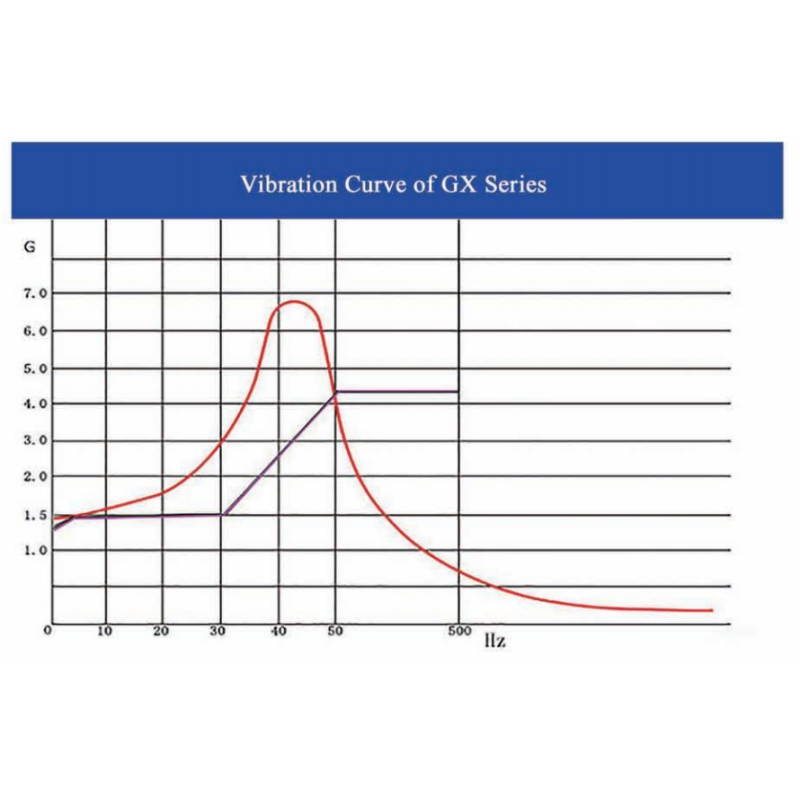

Vibration Curve
GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance
Impact Curve
GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance
Technical Parameter GX-10A(N) GX-20A(N) GX-30A(N) GX-40A(N) GX-50A(N) GX-60A(N)
Pz Nominal Load(N) Downward Pressure
Resonance Magnification ≤4
High Vibrating Efficiency ≥95%
Working Temperature -55°C to +120°C
Shock(Ks) 30g/6ms
Peak Response G ≤3.5km/s²
Vibration (Kv) Accord with National Standard GJB150-16

Xi'an Hoan Microwave's GX-N Series provides reliable vibration protection throughout its entire lifecycle, ensuring consistent performance in even the most demanding environments.
